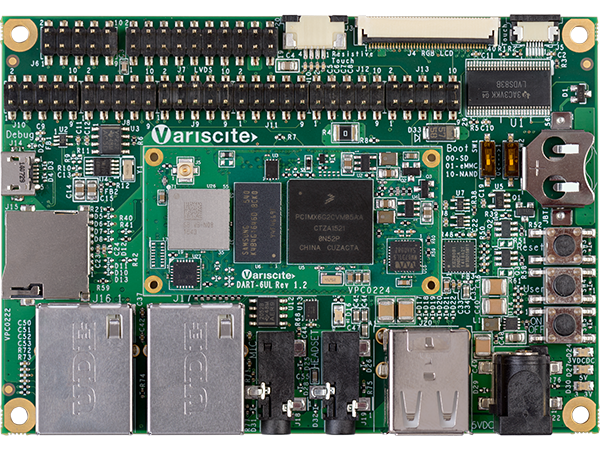

DART-6UL Evaluation Kits

Das DART-6UL Development Kit und das Starter Kit können als vollständige Entwicklungsplattform sowohl für Evaluierung als auch für Applikationsentwicklung dienen. Die Kits bieten eine übersichtliche Darstellung der Konnektivitätsfunktionen und der Leistung des DART-6UL.

  • iso 13485:2016
  • iso 9001:2015
  • iso 14001:2015

Spezifikationen

DART-6UL Starter Kit Starter KitDART-6UL Development Kit Development Kit

Included SOM

DART-6UL

DART-6UL

Included Carrier Board

VAR-6ULCustomBoard

VAR-6ULCustomBoard

Display

7″ WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable

v

v

Ethernet Cable

v

5V Power Supply

v

Antenna

v

v

Boot/Rescue SD Cards

v

v

Carrier Board Design Package

v

v

Part number

VAR-STK-6UL

VAR-DVK-6UL

DART-6UL with 512MB NAND & Wi-Fi 802.11b/g/nDART-6UL with 8GB eMMC & Wi-Fi 802.11b/g/nDART-6UL with 8GB eMMC & Wi-Fi 802.11ac/a/b/g/n

System on Module

DART-6UL

DART-6UL

DART-6UL

CPU Name

NXP i.MX6 UltraLite / i.MX 6ULL

NXP i.MX6 UltraLite / i.MX 6ULL

NXP i.MX6 UltraLite / i.MX 6ULL

CPU Type

Cortex-A7

Cortex-A7

Cortex-A7

CPU Cores

1

1

1

CPU Clock

900 MHz

900 MHz

900 MHz

RAM

512 MB

512 MB

512 MB

NAND Flash

512 MB SLC NAND

eMMC

8 GB

8 GB

Ethernet

Ethernet PHY

Ethernet PHY

Ethernet PHY

Wi-Fi

Certified Wi-Fi 802.11 b/g/n

Certified Wi-Fi 802.11 b/g/n

Certified Wi-Fi 802.11 ac/a/b/g/n

Bluetooth

Bluetooth 4.2/ BLE

Bluetooth 4.2/ BLE

Bluetooth 4.2/ BLE

Audio codec

Yes

Yes

Yes

OS support

Linux

Linux

Linux

Temperature

0 to 70°C

0 to 70°C

0 to 70°C

Part number

DART-6UL_Y2_900C_512R_05N…

DART-6UL_Y2_900C_512R_8N_…

DART-6UL-5G_Y2_900C_512R_…

VAR-6ULCustomBoard

Carrier Board

VAR-6ULCustomBoard

B2B socket

Supporting the DART-6UL (not included)

Parallel RGB

24 bit

LVDS

3 pair 18-bit

Capacitive

Capacitive touch panel, (6-pin FFC/FPC)

Resistive

Header

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

Camera

Parallel CMOS sensor interface

SD-CARD

uSD Card Socket

USB Host

1 port, Type A connector

DART-6UL Evaluation Kits Diagram

VAR-[STK / DVK]-6UL_LO

Including DART-6UL_Y2_900C_512R_05N_AC_EC_WB_CT

VAR-[STK / DVK]-6UL-E_LO

Including DART-6UL_Y2_900C_512R_8N_AC_EC_WB_CT

VAR-[STK / DVK]-6UL-5G-E_LO

Including DART-6UL-5G_Y2_900C_512R_8N_AC_EC_WBD_CT

STK/DVK

STK: Starter kit
DVK: Development kit
