DART-MX8M-MINI :
NXP i.MX8M Mini

Starting from $53

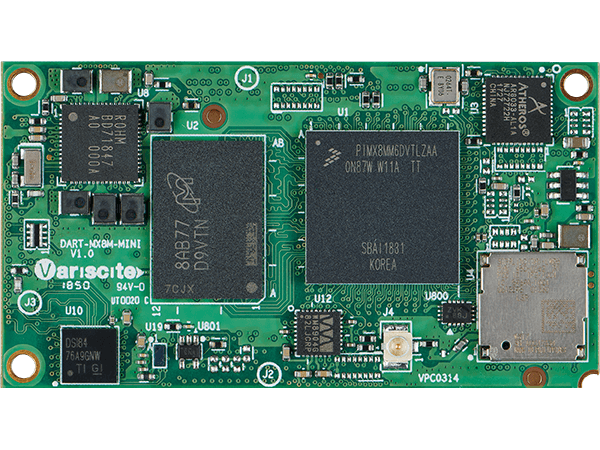

Packed in a tiny 55 x 30 mm package, the DART-MX8M-MINI System on Module / Computer on Module based on NXP’s i.MX8M Mini with up to 1.8GHz Quad-core ARM Cortex-A53™ plus 400MHz Cortex-M4™ real-time processor, leveraging advanced low power silicon process technology to provide optimized power consumption while maintaining a high-performance bar.

The DART-MX8M-MINI provides a pin2pin scalable option to the DART-MX8M-PLUS and the DART-MX8M with integrated 1080p video encode and decode acceleration support, 2D and 3D graphics, HQ audio and a wide range of connectivity options such as certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with BT/BLE 5.3 and optional 802.15.4, Ethernet and USB.

For the complete Pin2pin product list, check the Variscite Pin2Pin System on Module families.

** The Pin2Pin compatibility depends on pinmux options; please verify the detailed pinout table in the related SoM to confirm compatibility is maintained in your specific design.

Specifications

CPU	Up to 1.8GHz Quad Cortex™-A53 NXP i.MX8M Mini
Dimensions	Only 55 x 30 mm
Certified WiFi/BT	Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.3
Multimedia	1080p60 Encode/Decode and display, HQ audio, HD GPU
Temperature range	-40 to 85°C
Product Longevity	2034
Pin2pin Family	DART Pin2Pin family

CPU Name	NXP i.MX8M Mini
CPU Type	Cortex™-A53
CPU Cores	4 Cores
CPU Clock (Max)	Up to 1.8GHz
Real-time co-processor	400MHz Cortex™-M4
Integer performance (DMIPS)	Up to 16,560

RAM	1 – 4 GB LPDDR4
eMMC	8 – 128 GB

Multimedia
2D/3D Graphics Acceleration	Vivante GC320/GC NanoUltra
Video Encode / Decode	1080p60 H.265/H.264/VP9 Decode, 1080p60 H.264/VP8 Encode
Camera Interfaces	MIPI-CSI2

Display
DSI	MIPI-DSI 1920×1080 24-bit
LVDS	Dual 1920×1080 24-bit
Touch controller	Capacitive

Audio
Headphone driver	Yes
Microphone	Digital, Analog (stereo)
Digital audio serial interface	5 x I2S(SAI), S/PDIF, PDM
Line In/Out	Yes

Connectivity
SD / MMC	x1
USB Host / Device	USB2.0: 2x OTG
UART	x4, up to 4 Mbps
I2C	x3
SPI	x3
RTC	On carrier
JTAG	x1
QSPI	x1
PCI-Express	Gen 2.0

Networking
Ethernet	10/100/1000 Mbps
Wi-Fi	Rev.1: Certified Wi-Fi 5 dual-band 802.11 ac/a/b/g/n Rev.2: Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4
Bluetooth	Rev.1: BT/BLE 5.2 Rev.2: BT/BLE 5.3

Linux	Yocto, Debian, Boot2Qt
Android	Yes
FreeRTOS	Yes

Mechanical Specifications
Dimensions (W x L)	55.0 x 30.0 mm

Electronic Specifications
Supply voltage	3.5 – 5 V
Digital I/O voltage	3.3 V/1.8V

Environmental Specifications
Commercial operating temperature	0 to 70°C
Extended operating temperature	-25 to 85°C
Industrial operating temperature	-40 to 85°C
Storage temperature	-40 to 85°C
Storage humidity	5% to 95%

DART-MX8MM[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[LD]_[WB[D]]_[x]T
MX8MM[x]:	CPU type: Quad : [Q]
[xxxx]C:	CPU clock speed: 1800MHz: 1800C (CT), 1600MHz: 1600C (ET/IT)
[xxxx]R:	LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R
[xx]G:	eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G
[AC]:	Audio Codec
[EC]:	GbE PHY
[LD]:	LVDS interface
[WB[D]]	Rev1 WiFi/BT: WB: Built-in certified Wi-Fi 4 single band 802.11 b/g/n + BT/BLE 5.1 WBD: Built-in certified Wi-Fi 5 dual band 802.11ac/a/b/g/n + BT/BLE 5.2
[x]T:	C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

DART-MX8MM[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[LD]_[WBD/ WBE]_[x]T
MX8MM[x]:	CPU type: Quad : [Q]
[xxxx]C:	CPU clock speed: 1800MHz: 1800C (CT), 1600MHz: 1600C (ET/IT)
[xxxx]R:	LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R
[xx]G:	eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G
[AC]:	Audio Codec
[EC]:	GbE PHY
[LD]:	LVDS interface
[WBD/WBE]	Rev2 WiFi/BT: WBD: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.3 WBE: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.3 + 802.15.4
[x]T:	C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

DART-MX8M-MINI Evaluation Kits

Das DART-MX8M-MINI Development Kit und das Starter Kit können als vollständige Entwicklungsplattform sowohl für Evaluierung als auch für Applikationsentwicklung dienen. Die Kits bieten eine übersichtliche Darstellung der Konnektivitätsfunktionen und der Leistung des DART-MX8M-MINI.
