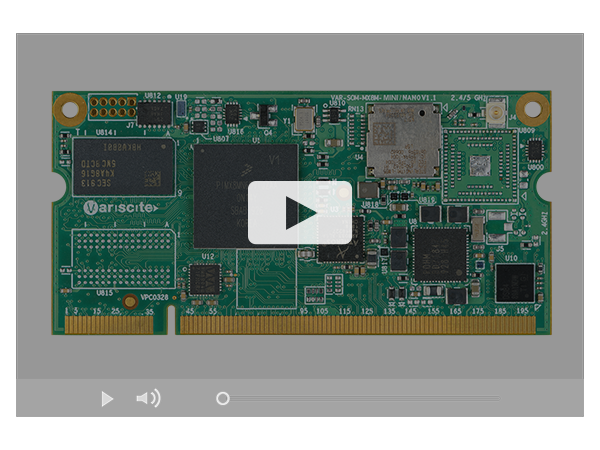

VAR-SOM-MX8M-NANO :
NXP i.MX 8M Nano

Ab 44$

Das VAR-SOM-MX8M-NANO ist ein kostenoptimiertes System on Module (SoM) / Computer on Module (CoM), das auf dem 1,5-GHz-Quad-Core-Cortex-A53™ von NXP und dem 650-MHz-Cortex-M7™ von i.MX 8M Nano basiert. Das SoM bietet eine ideale Lösung für kostensensitive Designs, die Energieeffizienz und Hochleistungsgrafiken erfordern.

Zu den Konnektivitätsoptionen dieser hochintegrierten Plattform gehören zertifiziertes Single-Band Wifi 802.11 b/g/n oder 802.11 ac/a/b/g/n Dual-Band Wifi, BT 5.2 / BLE, GbE und USB 2.0. Darüber hinaus unterstützt das System industrielle Betriebstemperaturen von -40 bis +85 °C, Vivante GC7000UL GPU, LVDS und DSI.

Der VAR-SOM-MX8M-NANO ist ein Mitglied der Produktfamilie „VAR-SOM Pin2pin“ und bietet einen maximalen Skalierbarkeitsbereich; von der i.MX6UL / 6ULL-Einstiegsplattform über die Plattformen i.MX 6-, I.MX 8M-MINI, i.MX 8X bis zum i.MX 8QuadMax.

Die vollständige Pin2Pin-Produktliste finden Sie bei den Pin2Pin-System on Module Familien von Variscite.

** Die Pin2Pin-Kompatibilität ist abhängig von den PinMux-Optionen. Bitte überprüfen Sie die detaillierte Pin-Belegungstabelle des zugehörigen SoM, um sicherzustellen, dass die Kompatibilität in Ihrem spezifischen Design erhalten bleibt.

    Spezifikationen

    CPU

    Up to 1.5GHz Quad Cortex™-A53 NXP i.MX8M Nano

    High-Speed Interfaces

    USB2.0, GbE

    Certified WiFi/BT

    802.11 ac/a/b/g/n + BT 5.2/BLE

    Graphics Acceleration

    GC7000Lite High Performance 2D/3D GPU

    Temperature range

    -40 to 85°C

    Product Longevity

    2034

    Pin2pin Family

    VAR-SOM Pin2Pin family

    CPU Name

    NXP i.MX 8M Nano

    CPU Type

    Cortex™-A53

    CPU Cores

    1-4 Cores

    CPU Clock (Max)

    Up to 1.5GHz

    Real-time co-processor

    650MHz Cortex™-M7

    Integer performance (DMIPS)

    Up to 13,800

    RAM

    512MB – 2GB DDR4

    SLC NAND

    256 – 512 MB

    eMMC

    8 – 128 GB

    Multimedia

    2D/3D Graphics Acceleration

    Vivante GC7000UL

    Camera Interfaces

    MIPI-CSI2

    Display

    DSI

    MIPI-DSI 1920×1080 24-bit

    LVDS

    Dual Flatlink 1920×1080 24-bit

    Touch controller

    Resistive, Capacitive

    Audio

    Headphone driver

    Yes

    Microphone

    Digital, Analog (stereo)

    Digital audio serial interface

    5 x I2S(SAI), S/PDIF, PDM 8CH

    Line In/Out

    Yes

    Connectivity

    SD / MMC

    x1

    USB Host / Device

    USB2.0: 1x OTG

    UART

    x4, up to 4 Mbps

    I2C

    x4

    SPI

    x3

    CAN Bus

    CAN/CAN-FD (Flexible Data-Rate)

    RTC

    On carrier

    JTAG

    x1 (via optional header)

    Networking

    Ethernet

    10/100/1000 Mbps

    Wi-Fi

    Certified single-band 802.11 b/g/n or dual-band 802.11 ac/a/b/g/n

    Bluetooth

    BT/BLE 5.2

    Linux

    Yocto, Debian

    Android

    Yes

    Mechanical Specifications

    Dimensions (W x L)

    67.8 x 33.0 mm

    Electronic Specifications

    Supply voltage

    3.3 V

    Digital I/O voltage

    3.3 V

    Environmental Specifications

    Commercial operating temperature

    0 to 70°C

    Extended operating temperature

    0 to 85°C

    Industrial operating temperature

    -40 to 85°C

    Storage temperature

    -40 to 85°C

    Storage humidity

    5% to 95%

    VAR-SOM-MX8M-NANO_BD Diagram

    VAR-SOM-MX8MN[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[LD]_[TP]_[CN]_[WB[D]]_[X]T

    MX8MN[x]:

    iMX 8M Nano cores: Quad : [Q]

    [xxxx]C:

    CPU clock speed: 1500MHz: 1500C (CT/ET grade), 1400MHz: 1400C (IT grade)

    [xxxx]R:

    DDR4: 512 MB: 512R, 1024 MB: 1024R, 2048 MB: 2048R
    (note: FreeRTOS supported only in 1024MB RAM and above)

    [xx]G:

    Storage:
    NAND: 256 MB: 02G, 512 MB: 05G
    eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

    [AC]:

    Audio Codec

    [EC]:

    GbE PHY

    [LD]:

    LVDS interface

    [TP]:

    Resistive touch panel controller

    [CN]:

    CAN bus bridge

    [WB[D]]

    WB: Built-in certified single-band Wi-Fi 802.11 b/g/n + Bluetooth 5.1/BLE
    WBD: Built-in certified dual-band Wi-Fi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE

    [x]T:

    C : 0 to 70°C, E: 0 to 85°C, I : -40 to 85°C

    Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

    VAR-SOM-MX8M-NANO Evaluation Kits

    Das VAR-SOM-MX8M-NANO Development Kit und das Starter Kit können als vollständige Entwicklungsplattform sowohl für Evaluierung als auch für Applikationsentwicklung dienen. Die Kits bieten eine übersichtliche Darstellung der Konnektivitätsfunktionen und der Leistung des VAR-SOM-MX8M-NANO.

    VAR-SOM-MX8M-NANO Evaluation Kits
