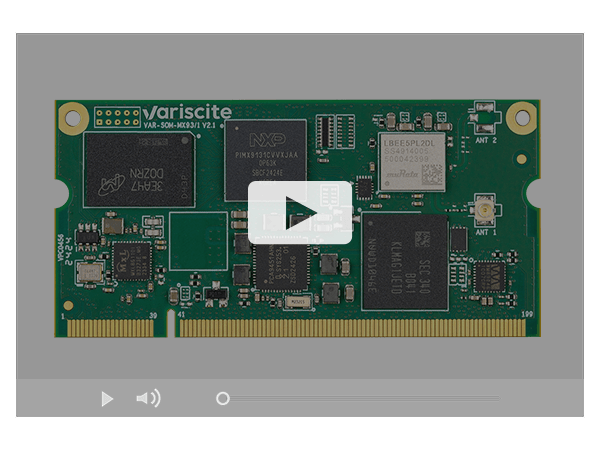

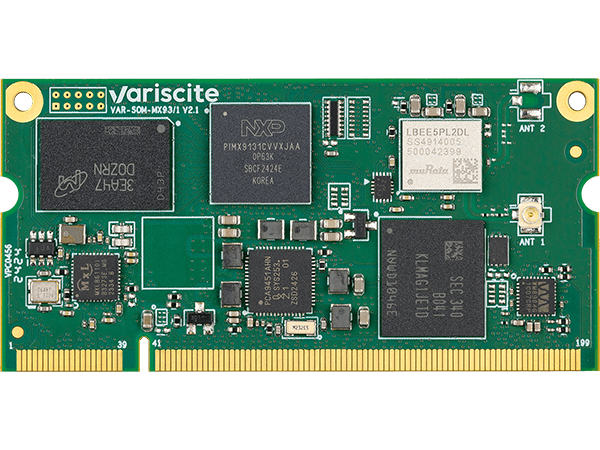

VAR-SOM-MX93

NXP i.MX93

Energy-efficient System on Module / Computer on Module with integrated AI/ML NPU (Neural Processing Unit) acceleration for smart embedded systems, at an attractive price point.

The SoM runs on 1.7GHz Dual Cortex™-A55 NXP iMX93 processor with 250MHz Cortex-M33 Real-time co-processor, and delivers energy flex architecture, built-in security features along with industrial features such as dual CAN bus, dual GbE, and industrial temperature grade. In addition, it offers a wide set of peripherals and connectivity options such as audio in/out, camera inputs, certified Wi-Fi 6 dual-band 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4.

The VAR-SOM-MX93 is compatible with the VAR-SOM Pin2Pin family, providing maximum scalability and leading-edge capabilities; from entry-level i.MX6UL/6ULL platforms, through i.MX 8M NANO/MINI/PLUS and i.MX 93, up to i.MX 8X and 8QuadMax high-performance platforms.

For the complete Pin2Pin product list, check out Variscite’s Pin2Pin System on Module product families.

* The Pin2Pin compatibility depends on pinmux options; please verify the detailed pinout table in the related SoM to confirm compatibility is maintained in your specific design.

Starting from

Order Online

+ Add to compare

Highlights

CPU

Up to 1.7GHz Dual Cortex-A55 NXP i.MX93

High Speed Interfaces

2x USB2.0, 2x GbE

Certified WiFi/BT

Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4

Temperature range

-40 to 85°C

Multimedia

AI/ML acceleration, 2D PXP engine

Product Longevity

2038

Pin2pin Family

VAR-SOM Pin2Pin family

Learn More

Support

Supporting you every step of the way - from ideation to launch and beyond. Free and prompt support directly from Variscite’s R&D experts.

Quick Links

Specifications

CPU Name
NXP i.MX93
CPU Type
Cortex-A55
CPU Cores
2 cores
CPU Clock (Max)
Up to 1.7GHz
Real-time co-processor
250MHz Cortex-M33
Integer performance (DMIPS)
Up to 9,010

RAM

512 - 2048 MB LPDDR4

eMMC

8 – 128 GB

Multimedia

2D/3D Graphics Acceleration
2D pixel acceleration engine (PxP)
Camera Interfaces
MIPI-CSI2, ISI (Parallel)
AI/ML
AI/ML NPU acceleration 0.5 TOPS

Display

Parallel RGB
1366x768p60 or 1280x800p60
DSI
MIPI-DSI 1920×1200 24-bit
LVDS
1366x768p60 or 1280x800p60
Touch controller
Resistive, Capacitive

Audio

Headphone driver
Yes
Microphone
Digital, Analog (stereo)
Digital audio serial interface
3 x I2S(SAI), S/PDIF, RX TX, PDM 4CH
Line In/Out
Yes

Connectivity

SD / MMC
x2
USB Host / Device
USB2.0: 2x OTG
UART
x7, up to 5 Mbps
I2C
x7
13C
x2
SPI
x7
CAN Bus
x2
RTC
On carrier
JTAG
x1
QSPI
x1
ADC
x4

Networking

Ethernet
2x 10/100/1000 Mbps
Wi-Fi
Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4
Bluetooth
BT/BLE 5.4

Linux

Yocto, Debian

FreeRTOS

Yes

Mechanical Specifications

Dimensions (W x L)

67.8 x 33mm

Mechanical Specifications

Supply voltage

3.3V or 3.4-5V

Digital I/O voltage

3.3V/1.8V

Environmental Specifications

Commercial operating temperature
0 to 70°C
Extended operating temperature
-25 to 85°C
Industrial operating temperature
-40 to 85°C
Storage temperature
-40 to 85°C
Storage humidity
5% to 95%

VAR-SOM-MX93[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WBD/WBE]_[DSCM]_[VBT]_[SDEX]_[X]T

MX93[x]:
Processor type:

i.MX 9331 single core no NPU: S

i.MX 9352 dual core with NPU: D
[xxxx]C:
CPU clock speed: 1700MHz: 1700C
[xxxx]R:
LP-DDR4: 512 MB: 512R, 1536 MB: 1536R, 2048 MB: 2048R
[xx]G:
eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G
[AC]:
Audio Codec
[EC]:
GbE PHY
[TP]:
Resistive touch panel controller
[WBD/WBE]
WBD: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4

WBE: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4
[SDEX]
Default: no extra SDIO

SDEX: extra SDIO port, available only when no WBD/WBE is selected
[DSCM]
Default: LVDS on CH#0, DSI on CH#1

DSCM: LVDS on CH#1, DSI on CH#0 for compatibility with MINI/PLUS
[VBT]
Default: Standard supply voltage

VBT: Higher battery supply voltage
[x]T:
C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

Documentation

Reference Manuals

VAR-SOM-MX93 Brief

V2_Product Datasheet
(doc v2.4)

V1_Product Datasheet
(doc v1.4)

Quick Start Guide

i.MX 93 Fact Sheet

Pinmux table

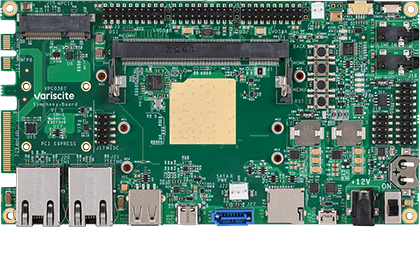

Carrier Board

Product Datasheet
(doc v1.09)

Carrier Board Schematics
(doc v1.29)

Mechanical

DXF Files

3D files

OS Support

Certifications

Radiation test report
(doc v1.0)

REACH

RoHS I / II / III

Conflict Minerals

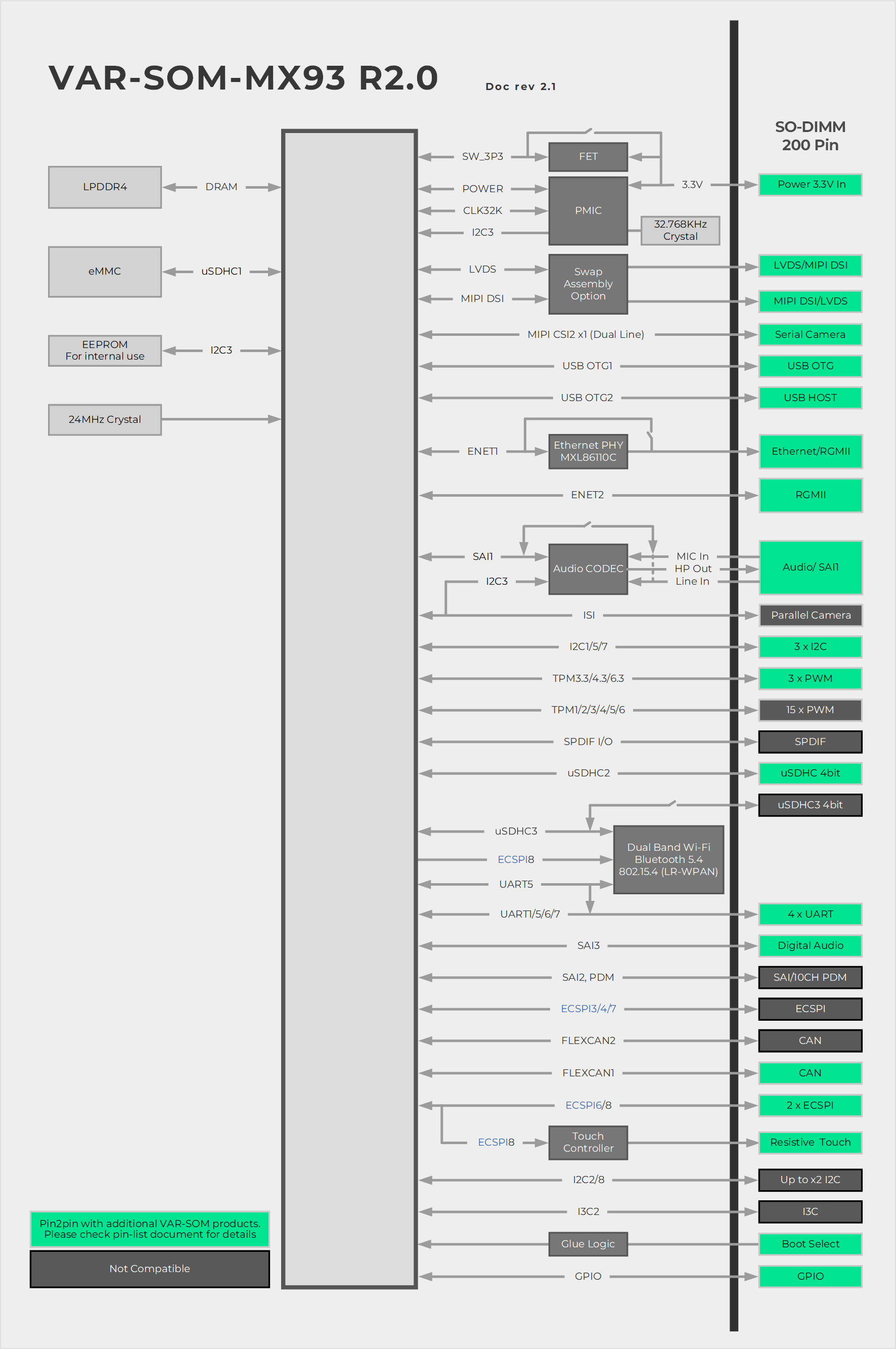

Block Diagram

Our long-standing partnerships

Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.

Meet Our Partners

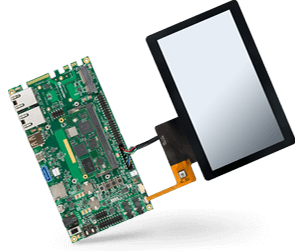

Evaluation Kit

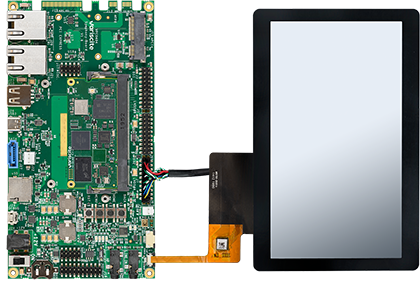

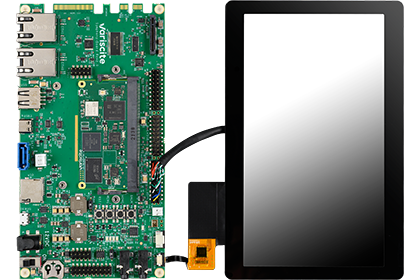

VAR-SOM-MX93 Evaluation Kits

Order a Kit Kit Specs

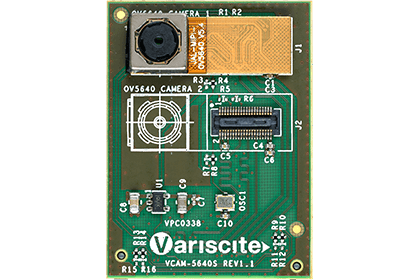

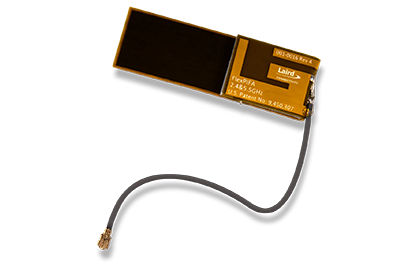

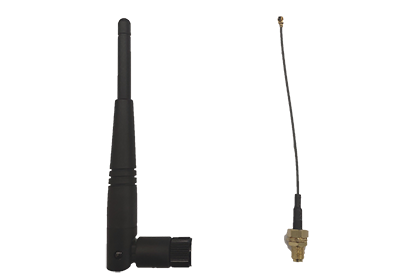

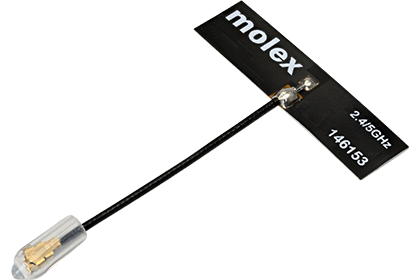

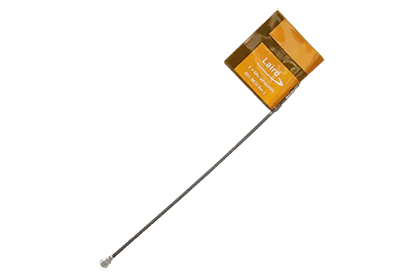

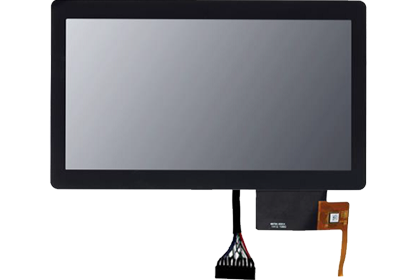

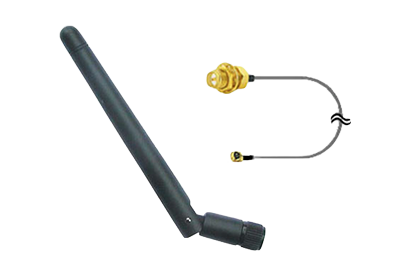

Accessories
