Highlights
Frame.svg
CPU
Up to 1.4GHz Quad Cortex-A53 Texas Instruments Sitara AM62P5
Group-1000002059.svg
Multimedia
H.264/H.265 Video Encode/Decode,
3D GPU with OpenGL ES 3.2 & Vulkan 1.2
Frame_2.svg
Certified WiFi/BT
Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4
Frame_4.svg
Temperature range
-40 to 85°C
Real time CPU
Real-time CPU
800MHz Cortex-R5F
calendar.svg
Product Longevity
2040
Group-1000002196.svg
Pin2pin Family
VAR-SOM Pin2Pin family
Learn More
System on Module support
Support
Supporting you every step of the way - from ideation to launch and beyond. Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name

Texas Instruments AM62P5

CPU Type

Cortex-A53

CPU Cores

4 Cores

CPU Clock (Max)

Up to 1.4GHz

Real-time co-processor

800MHz Cortex-R5F

Integer performance (DMIPS)

Up to 12,880

RAM

1 – 8 GB LPDDR4

eMMC

8 – 128 GB

Multimedia
2D/3D Graphics Acceleration

3D GPU with OpenGL ES 3.2 & Vulkan 1.2

Video Encode / Decode

H.264/H.265 Video Encoder/Decoder

Camera Interfaces

MIPI-CSI2

Display
DSI

MIPI-DSI 3840x1080@60fps 24-bit

LVDS

2x LVDS up to 3840x1080@60fps 24-bit

Touch controller

Resistive, Capacitive

Audio
Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

3 x I2S(McASP)

Line In/Out

Yes

Connectivity
SD / MMC

x1

USB Host / Device

USB2.0: 2x OTG

UART

x9, up to 3.6 Mbps

I2C

x5

SPI

x5

CAN Bus

4x CAN/CAN-FD (Flexible Data-Rate)

RTC

On carrier

JTAG

x1 (via optional header)

QSPI

x1 OSPI/ x2 QSPI

GPMC

GPMC for external 8/16-bit parallel bus

Networking
Ethernet

2x 10/100/1000 Mbps

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

BT/BLE 5.4

Linux

Yocto, Debian

Android

Yes

Mechanical Specifications
Dimensions (W x L)

67.8 x 33mm

Electronic Specifications
Supply voltage

3.3V

Digital I/O voltage

3.3V

Environmental Specifications
Extended operating temperature

0 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

zoom
VAR-SOM-AM62P5[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WBD/WBE]_[OSPI/GPMC/MMC2]_[RG2CM]_[DSI]_[LD0]_[X]T
AM62P5[x]:

Processor type:
TI AM62P54 quad core: 4

[xxxx]C:

CPU clock speed: 1400MHz: 1400C

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G

[AC]:

Audio Codec

[EC]:

GbE PHY (second port always via RGMII)

[TP]:

Resistive touch panel controller

[WBD/WBE]

WBD: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[OSPI/GPMC/MMC2]

Default: No extra interface
OSPI: Extra Octa/Quad/Dual SPI
GPMC: Extra parallel bus
MMC2: Extra SDIO/MMC2 (available only without WB/WBD)

[RG2CM]

Default: 3.3V over the RGMII pins
RG2CM: 1.8V over the RGMII pins

[DSI]

Default: Dual LVDS (#0 and #1)
DSI: DSI output instead of LVDS #0

[LD0]

Default: LVDS #0 outputs on its default pins
LD0: LVDS #0 instead of MCU/WKUP pins (available only when DSI mode is selected)

[x]T:

E: -25 to 85°C, I : -40 to 85°C

Documentation

Our long-standing partnerships

Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Meet Our Partners
Evaluation Kit

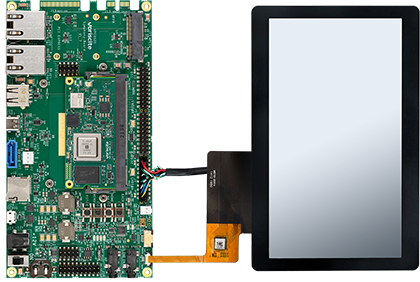

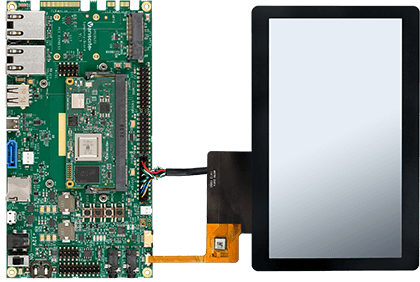

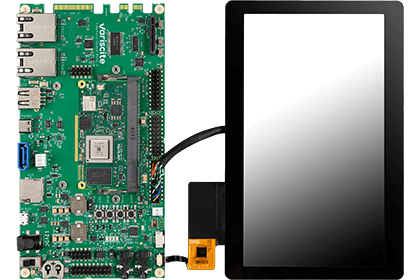

VAR-SOM-AM62P Evaluation Kits
Order a Kit Kit Specs
VAR-SOM-AM62P Evaluation Kits
Accessories
Symphony-Board
VCAM-5640S-1ST
Camera Board
VAC-ANT_2_4_Dipole
VAC-ANT_5_Dipole
VAC-ANT_2_4_FlexPIFA
VAC-ANT_5_FlexPIFA
VLCD-CAP-GLD-LVDS
VHP-AM62P

Get your custom quote

Fill out the details below and one of our
representatives will contact you shortly






    System on Module Platform

    Estimated Quantities


    Thank you for submitting your Quote
    Want to start your evaluation ASAP?
    Order a Kit
    VAR-SOM-AM62P Evaluation Kits
    Back

    Why Variscite?

    Quality
    In-house manufacturing with comprehensive quality control - certified to ISO9001 and ISO13485 medical standards.
    Pin2Pin
    Our Pin2Pin product families maximize scalability and enable seamless migration to future technologies without redesigning the carrier board.
    Longevity
    15-year guaranteed hardware availability, backed by continuous software updates and support.
    Customizability
    Configure your system with precision and flexibility - select only the features you need and reduce costs.
    Learn More
    Updates
    Check Point and Variscite Webinar
    Webinar: Secure-by-Design with Check Point and Variscite: Hardening IoT Devices from the First Line of Code
    A technical session tailored for embedded engineers looking to build secure, regulation-ready devices - right from the first line of code. In this live session, you will: Learn about today’s top cybersecurity threats targeting embedded devices - understand real-world attack…
    02.07.2025
    Watch
    Software releases
    August 2025 Software Releases
    August 2025 Software Releases
    Stay current with software updates – Keep your Variscite SoMs performing at their best with our latest software releases.

    10.09.2025
    Read Moreread more
    Newsroom

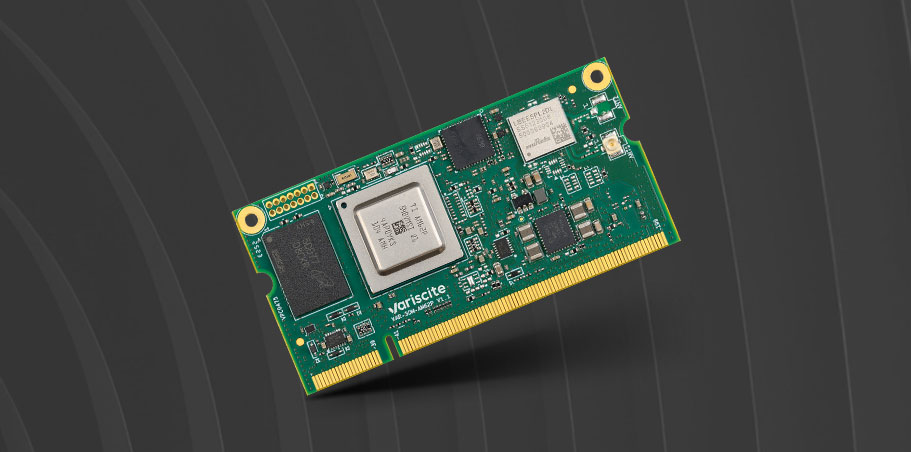

    VAR-SOM-AM62P System on Module (SoM)
