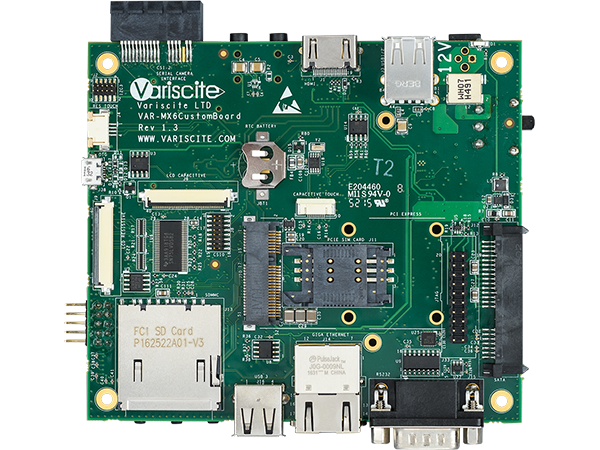

VAR-MX6CustomBoard

Der Single Board Computer (SBC) VAR-MX6CustomBoard kann als Entwicklungsplattform oder Endprodukt eingesetzt werden. In Verbindung mit dem VAR-SOM-MX6, bietet er mit zusätzlichen Schnittstellen wie RS485, Gigabit Ethernet, LVDS usw. noch umfangreichere Verbindungsoptionen.
  • ISO 13485:2016 certification
  • ISO 9001:2015 certification
  • ISO 14001:2015 certification

Spezifikationen

SODIMM 200 socket

Supporting the VAR-SOM-MX6 (not included)

Display

RGB

18-bit RGB parallel display interface (40-pin FFC/FPC connector for 7″ WVGA LCD)

LVDS

18-bit / 24-bit

HDMI

1.4

Backlight Driver

Yes

Audio

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

Touch Panel

Resistive

4-wire touch panel, 4-pin FFC/FPC

Capacitive

Capacitive touch panel, (10-pin FFC/FPC)

Camera interfaces

Serial Camera

Interfaces with the VAR-EXT-CB402 Camera Board

Parallel Camera

Header

USB

USB Host

3 ports, Type A connector

USB OTG

Type Mini AB connector

Expansions

SD-CARD

SD Card Socket

S-ATA

7 + 15, female connector

PCI-Express

mini-PCIe connector

SIM Card

Supporting mini-PCIe modem

Serial Ports

RS232 (1)

DV-9 male (DTE)

RS232 (2)

IDC10 Header (Debug)

RS485

Header

CAN Bus

CAN bus interface with isolator and driver

Expansion Connectors

EIM – Local Bus interface

SD/MMC interface

SPI, I2C

UART

GPIOs

JTAG

Ethernet

10/100/1000 Mbps, RJ45

Mechanical Specifications

Dimensions (W x L x H)

12 cm x 10.5 cm x 2.4 cm

Electronic Specifications

Supply voltage

7.5V -14V DC input, 2.5 mm DC jack

RTC

Coin RTC Backup battery socket (CR1225)
